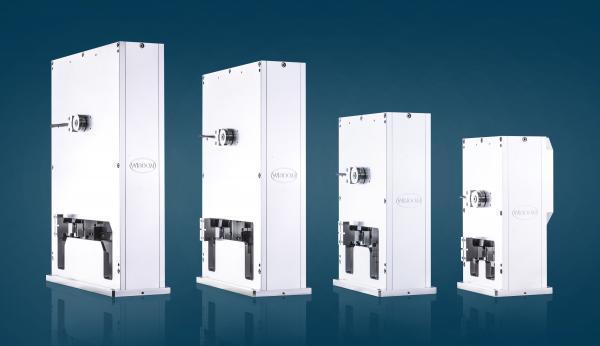

Pick and place unit (P.P.U.) model BS

Pick and place unit (P.P.U.) model BS
Product ID: PPU-BS

Certificate of Utility Model Registration

Taiwan Patent: M537087

the People's Republic of China Patent: ZL 2016 2 1236754.8

Japan Patent: 3216031

See more complete detail

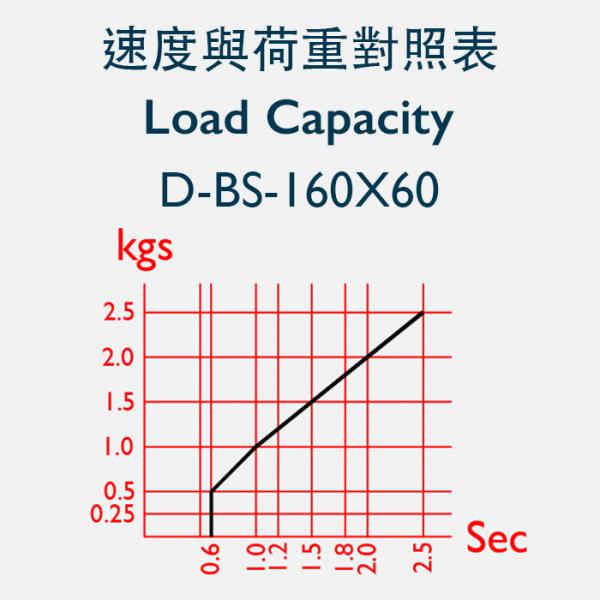

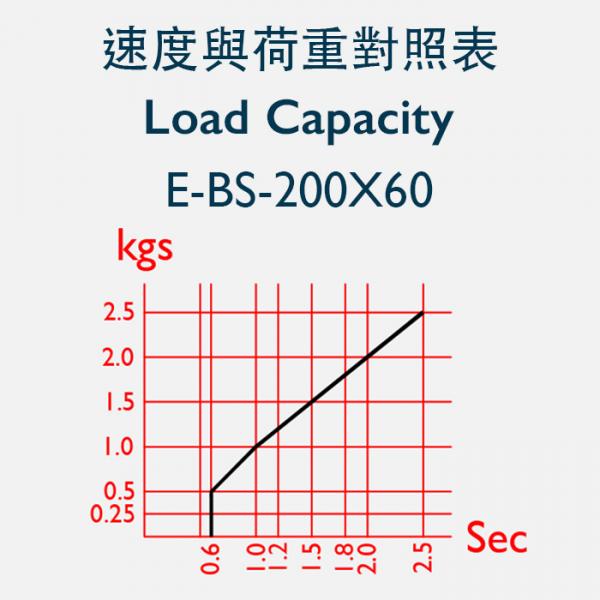

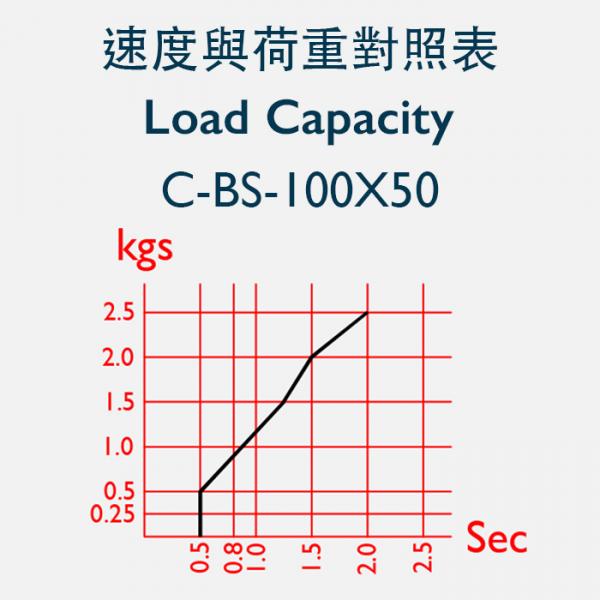

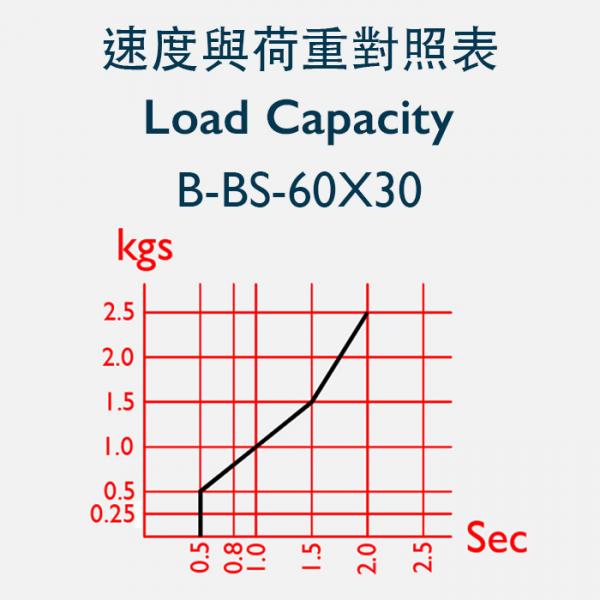

Model B-BS-060x30 C-BS-100x50 D-BS-160x60 E-BS-200x60
Size (mm) 255x150x105 293x190x105 375x250x105 405x290x105
Stroke X: 60m/m,    Z: 30m/m X: 100m/m,  Z: 50m/m X: 160m/m,  Z: 60m/m X: 200m/m,  Z: 60m/m
Repeatability Precision ±0.015m/m ±0.015m/m ±0.015m/m  ±0.015m/m
Max. Speed 0.5s/cycle 0.5s/cycle 0.6s/cycle 0.6s/cycle
Motor

DC 24V      15～40W

 DC 24V 15~40W DC 24V 15~40W DC 24V 15~40W
Sensor Origin 1 pcs, Jaw or Sucker 1 pcs Origin 1 pcs, Jaw or Sucker 1 pcs  Origin 1 pcs, Jaw or Sucker 1 pcs Origin 1 pcs, Jaw or Sucker 1 pcs
Weight 7Kg  9.8Kg 14.35Kg 18Kg



Profile
Business Type:OEM Manufacturer ODM Manufacturer Exporter/Agent Distributor
Markets: World Wide
Main Products:Taping & Reel Machine, Taping & Reel Machine-Dual Head, Fiber Assembly Machine, Connecter Production Machine, 40° Simm Auto Loading Machine, Taping & Reel Machine-For Tube, Paper-Wrapping Machine, Automatic Screwing Machine-For Quad Washer, U-Bend Machine, Video Cassette Assembly Machine, Golf Seam Buffing Machine, Pump Assembly Machine
No. of Employee:10
Location:Taiwan
Contact Detail
Address:No.14, Aly. 2, Ln. 2, Sec. 1, Minsheng N. Rd., Guishan Dist., Taoyuan City, Taiwan
TEL:+886-3-3251286 / 3253705
FAX:+886-3-3252898
Email:wisdomauto@wisdomauto.com.tw
URL:http://www.wisdomauto.com.tw
ZIP:333
