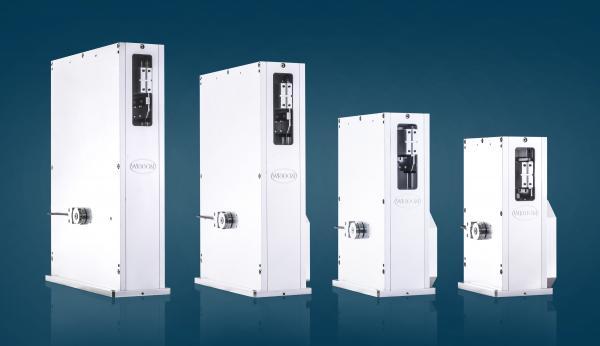

Pick and place unit (P.P.U.) model AF

Pick and place unit (P.P.U.) model AF
Product ID: PPU-AF

Certificate of Utility Model Registration

Taiwan Patent: M537087

the People's Republic of China Patent: ZL 2016 2 1236754.8

Japan Patent: 3216031

See more complete detail

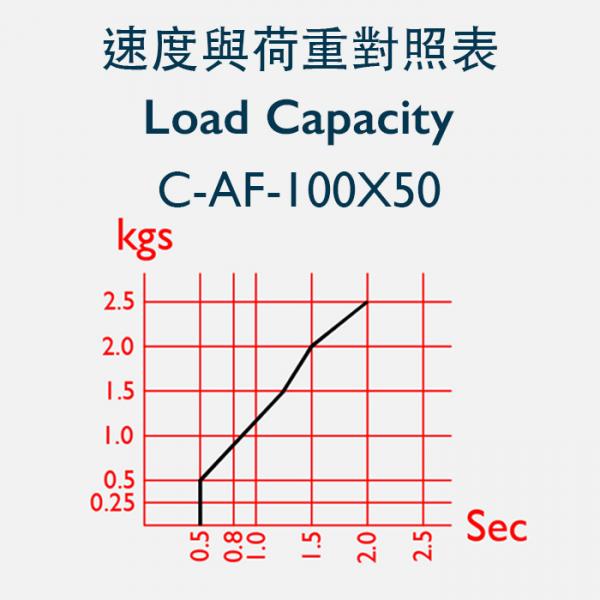

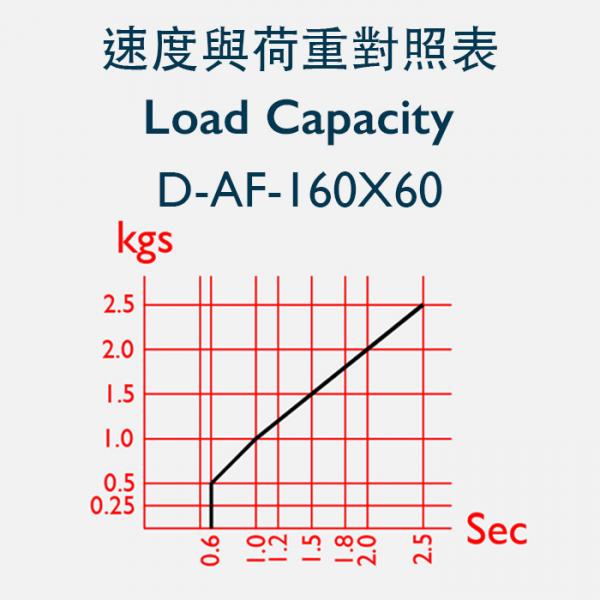

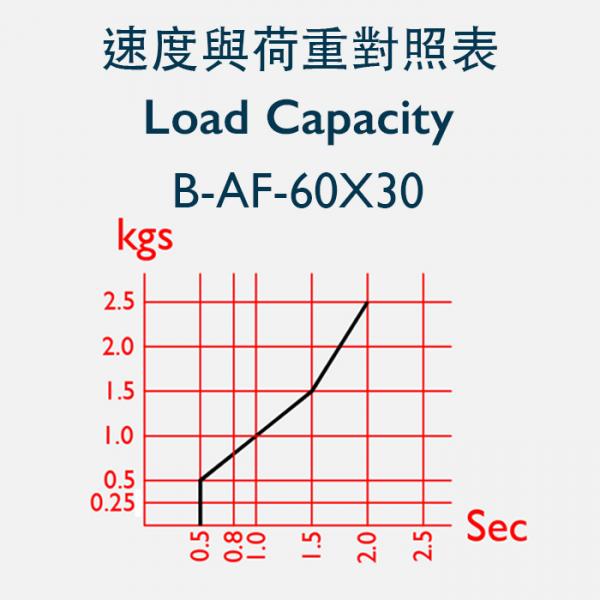

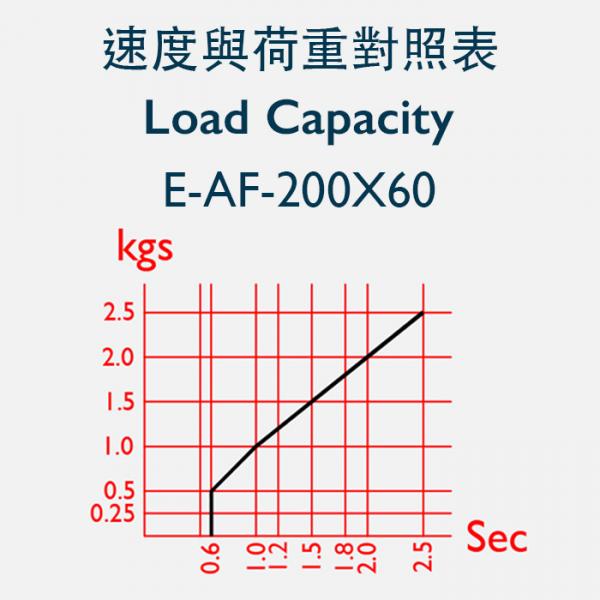

Model B-AF-060x30 C-AF-100x50 D-AF-160x60 E-AF-200x60
Size (mm) 255x150x105 293x190x105 375x250x105 405x290x105
Stroke X: 60m/m,    Z: 30m/m X: 100m/m,  Z: 50m/m X: 160m/m,  Z: 60m/m X: 200m/m,  Z: 60m/m
Repeatability Precision ±0.015m/m ±0.015m/m ±0.015m/m  ±0.015m/m
Max. Speed 0.5s/cycle 0.5s/cycle 0.6s/cycle 0.6s/cycle
Motor

DC 24V      15～40W

 DC 24V 15~40W DC 24V 15~40W DC 24V 15~40W
Sensor Origin 1 pcs, Jaw or Sucker 1 pcs Origin 1 pcs, Jaw or Sucker 1 pcs  Origin 1 pcs, Jaw or Sucker 1 pcs Origin 1 pcs, Jaw or Sucker 1 pcs
Weight 7Kg  9.8Kg 14.35Kg 18Kg
