Product

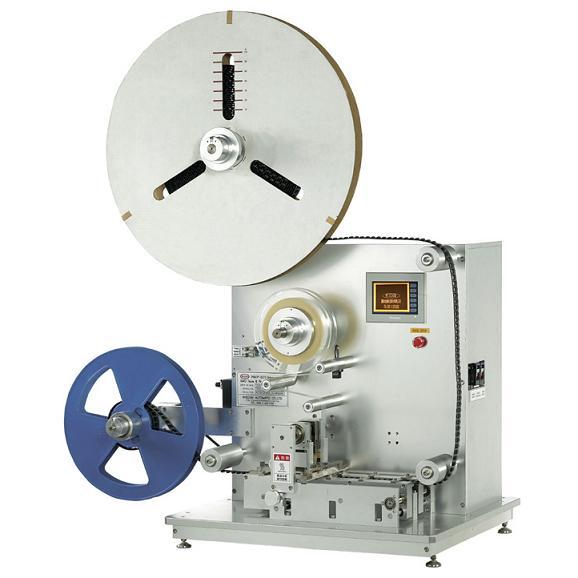

Tape&Reel M/C(Manual)

Tape&Reel M/C(Manual)

Tape&Reel M/C(Manual)

More Details

Product ID: WMP-501

1.Bare Chip/Flip Chip/DRAM/LED
2.Wafer Level Package(WLP)Chip.
3.SMT Components/Connectors.

Features:
  • HMI(Human Machine Interface) operation.
  • Stepping motor shift the Tape modifiability
  • Pitch & Quantity exchangeable
  • Sensor Confirm Component
  • It will join the automation equipment
See more complete detail
Tape Product Size 8,12,16,24,32,44,56,72,88mm
UPH(Throughput) 4,800-7,200UPH(units per.hour)
Pick&Place Accuracy ±50u m
Heater DC/AC; 40W x 2
Facilities 110V / 220V AC/1phase/60Hz;Air:4-6kgf/cm²
Weight Approx.50kg
Machine Dimensions 650(W)x500(D)x865(H)mm
Profile
Business Type:OEM Manufacturer ODM Manufacturer Exporter/Agent Distributor
Markets: World Wide
Main Products:Taping & Reel Machine, Taping & Reel Machine-Dual Head, Fiber Assembly Machine, Connecter Production Machine, 40° Simm Auto Loading Machine, Taping & Reel Machine-For Tube, Paper-Wrapping Machine, Automatic Screwing Machine-For Quad Washer, U-Bend Machine, Video Cassette Assembly Machine, Golf Seam Buffing Machine, Pump Assembly Machine
No. of Employee:10
Location:Taiwan
Contact Detail
Address:No.14, Aly. 2, Ln. 2, Sec. 1, Minsheng N. Rd., Guishan Dist., Taoyuan City, Taiwan
TEL:+886-3-3251286 / 3253705
FAX:+886-3-3252898
Email:wisdomauto@wisdomauto.com.tw
URL:http://www.wisdomauto.com.tw
ZIP:333
