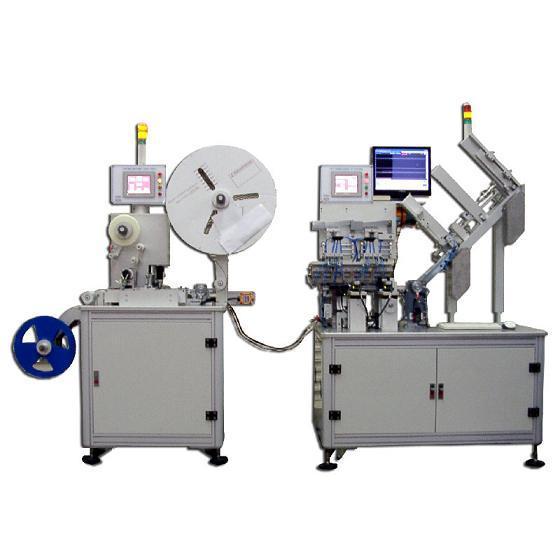

Tube to Tape CCD Vision inspection & Packing

Tube to Tape CCD Vision inspection & Packing

Board to board connecter CCD inspection & Packing

More Details

Product ID: 04

1.Bare chip,Flip chip,Dram,LED.
2.Wafer level package(wlp) chip.
3.Smt components,connectors.

See more complete detail
Tape product size 8,12,16,24,32,44,56(mm)
Throughput >=6000 UPH (units per. hour)
Pick & Place Accuracy ±50u m
Heater DC/AC; 40W x 2, 40W x 4
Facilities 110V / 220V AC/1phase/60Hz; Air: 4~6kgf/cm²
Weight Approx. 200kg
Machine Dimensions 1500(W) x 600(D) x 1910(H)mm
Profile
Business Type:OEM Manufacturer ODM Manufacturer Exporter/Agent Distributor
Markets: World Wide
Main Products:Taping & Reel Machine, Taping & Reel Machine-Dual Head, Fiber Assembly Machine, Connecter Production Machine, 40° Simm Auto Loading Machine, Taping & Reel Machine-For Tube, Paper-Wrapping Machine, Automatic Screwing Machine-For Quad Washer, U-Bend Machine, Video Cassette Assembly Machine, Golf Seam Buffing Machine, Pump Assembly Machine
No. of Employee:10
Location:Taiwan
Contact Detail
Address:No.14, Aly. 2, Ln. 2, Sec. 1, Minsheng N. Rd., Guishan Dist., Taoyuan City, Taiwan
TEL:+886-3-3251286 / 3253705
FAX:+886-3-3252898
Email:wisdomauto@wisdomauto.com.tw
URL:http://www.wisdomauto.com.tw
ZIP:333
